How To Build a Storage Shed / Garden Shed

These free shed plans are for a 8x8 barn style storage shed, garden shed. Once you have decided on the type of storage shed , you will need some storage shed plans.

If you have decided to build an 8x8 gamrel roof storage shed take a look around at my free storage shed plans. If you decide to build this type of storage shed, start by cutting all your material then assemble your shed.

If you are looking for something different, you may want to check out this site, Sheds software from Big Hammer I have not bought this software, but it looks good and would like to try it.

I hope this blog helps you building your storage shed / garden shed. I have put lots of pictures, and will try to explain the steps, to build this 8x8 gambrel roof storage shed.
Free Shed Plans - Step-By-Step: Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7

step 3 Framing the Storage Shed Roof

How to build a storage shed
Material for roof frame

20- 2x4x 36"- Rafters (22 1/2 deg each end)
24- Gussetts



Lay them on a table or floor.

Spread the bottom and make sure it is the exact same distance of shed, and the peak is in the center.

Nail a gusset where the rafters join.

Make sure all your trusses are exactlly the same, use your first truss as a template to build the rest.

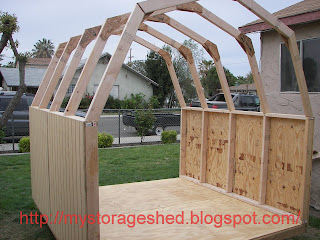

Set truss in place, directly over the wall studs, and nail them.

Free Shed Plans - Step-By-Step: Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7

- Glossary of Terms -

  • auger - A tool for drillingholes in wood, consisting of a bit with a spirally inclined plane and a handle.
  • baluster - A rod supporting a stair or porch railing.
  • bar clamp - A long metal bar with an adjustable clamp.
  • batten - A strip of wood, or a board, used to bridge or seal a gap between two other boards.
  • beveled cut - An angle cut.
  • bit- That part of a drill or auger which actually makes the hole.
  • block plane - A small hand tool used to shave off or smooth lumber.
  • box nail - A thin shanked , flat headed nail.
  • centers - The measured distance between the center of one stud or joist, rafter, etc. and its neighbor.
  • chalk line - A string coated with chalk dust, used to mark long, strieght lines.
  • chisel - A straight or beveled edge tool used for paring wood.
  • combination square - A 12 inch long measuring toolwith a sliding head, which can be adjusted at different lengths. The head has one at a 90 degree -right- angle to the blade and the other edge at a 45 degree angel.
  • common nail - A flat headed nail with a heavier head and thicker chank than a box nail.
  • counterbore - To bore a hole in order to recess a screw head. The hole is often filled with a wooden plug.
  • countersink - To drive a nail or screw until the head is below the surface of the wood.
  • finishing nail - A headless or nearly headless nail.
  • gusset- A flat brace joining two boards, often a triangle of plywood joining two rafters at the roof peak.
  • jamb - The inner framework of a door facing the edge of the door.
  • rafter - A timber extending from roof peak to wall top.
  • skid - A foundation board for small building, like a little storage shed or dog house
  • wood clamp - Two wooden jaws with a adjustable threaded steel rods running through them.
